River Valley Park is a public park, managed by Fingal County Council, giving access to green areas bounding the Ward River.

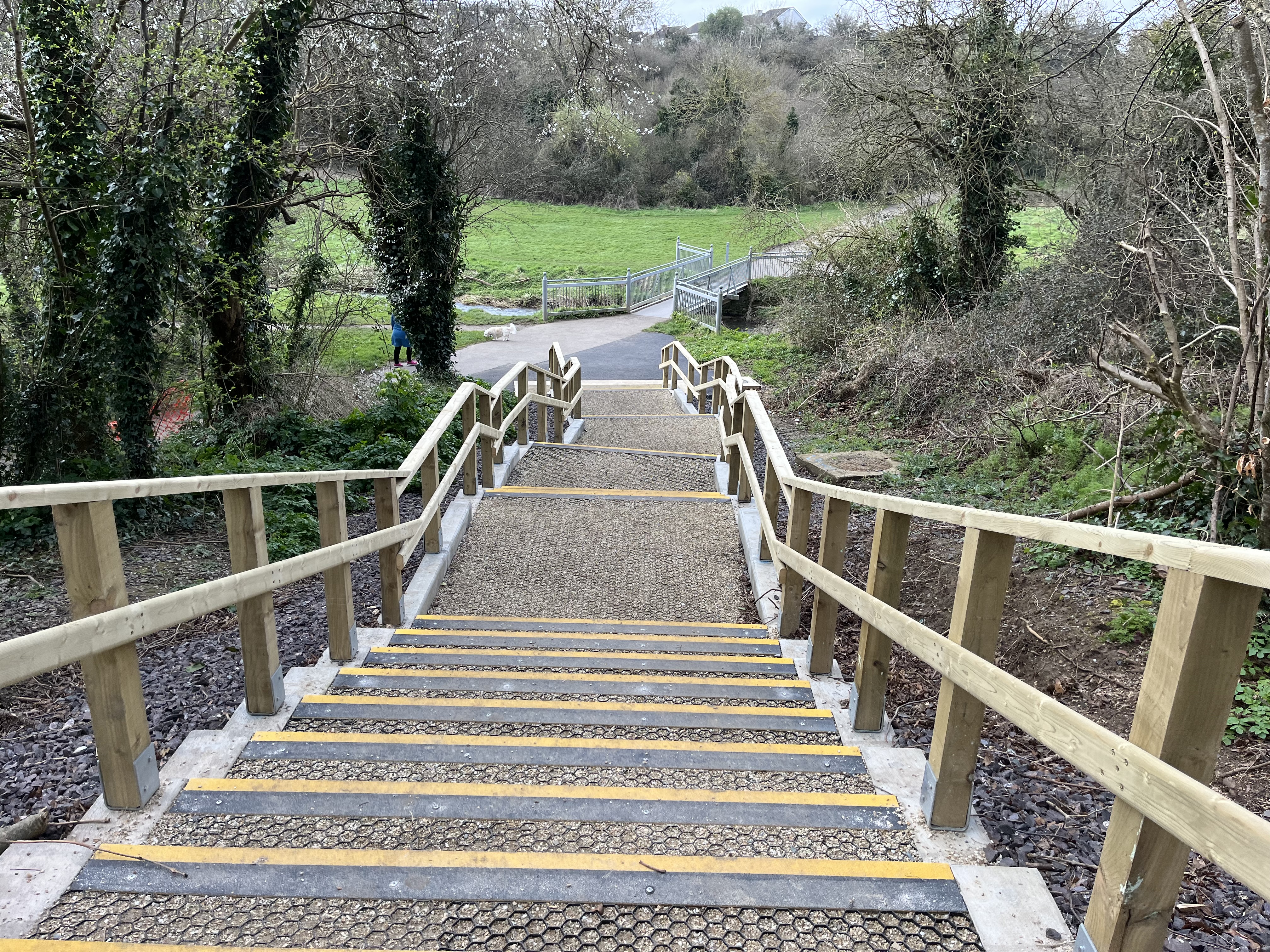

The scope of works consisted of retrofitting 3 sets of individually designed steps, to replace the existing dilapidated walkway, to facilitate safe access/egress to a series of paths throughout the park. This was particularly in light of increased usage arising from a change in work/life behaviour as a consequence of Covid. The solution was achieved via the compliant design of outdoor access infrastructure, which uniquely compliments the environment.

Before the commencement of work at River Valley Park, a comprehensive set of preparatory works was taken to ensure safety and efficiency. A site-specific risk assessment was carried out to identify and mitigate potential hazards. The existing sleeper steps were removed carefully, with excavation and base material levelling conducted to prepare for the new steps.

Drainage pipes were installed in parallel with the step construction, ensuring appropriate water management. The new steps were installed progressively, starting from the bottom, with concrete landings, step rungs, and side legs being placed, followed by backfilling and the installation of cellular paver grids filled with gravel.

Throughout the project, attention was given to environmental and safety considerations, including waste management, public safety through fencing and signage, and the protection of the nearby watercourse with sandbags acting as silt traps. The outcome delivered provides a durable, safe access way, whilst maintaining the integrity of the park’s environment.

The successful installation of the walkways at River Valley Park in Swords highlights IUS’ ability to plan and execute a complex project in a busy public space. By adhering to rigorous safety procedures, utilising the latest equipment, and following a structured sequence of works, the project was completed on time and in line with the requirements of Fingal County Council.

The new steps provide a safer, more accessible path for park visitors, while the careful attention to environmental impact ensures the park’s natural beauty remains intact for future generations.

“Fingal County Council is pleased with the successful completion of the River Valley Park steps project, which has significantly enhanced pedestrian access while preserving the park's natural beauty. IUS demonstrated exceptional planning, safety standards, and environmental responsibility throughout the process, delivering a unique solution that serves our community's needs while safeguarding the park's surroundings.”

Aileen O’Connor - Senior Executive Parks & Landscape Officer, Fingal County Council

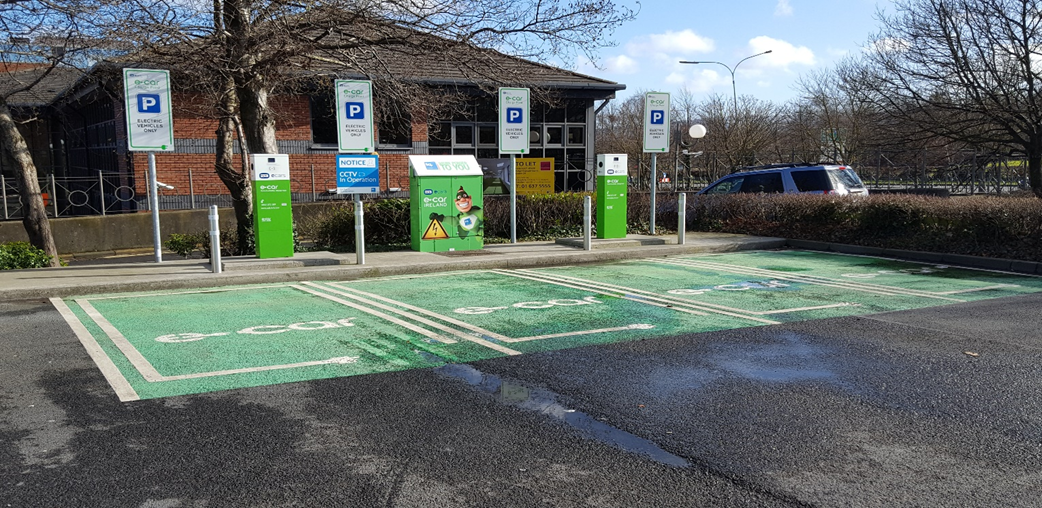

The project involved installing new and replacing existing Ecar charger points in over 100 locations throughout Ireland.

The work sites included built up areas, shopping centre carparks and remote rural locations. IUS managed the projects, complying with Health and Safety Regulations, traffic management procedures and local council requirements. All works were completed to ESB Specifications and Standards.

The scope of services included siting the new Ecar units on plinths cast in concrete, excavation of cable ducts, cabling between the Ecar charger points, installation of interface unit and the ESB mini pillar, signage, road markings, full reinstatement, and completion of test certification prior to sign off by our client, ESB.

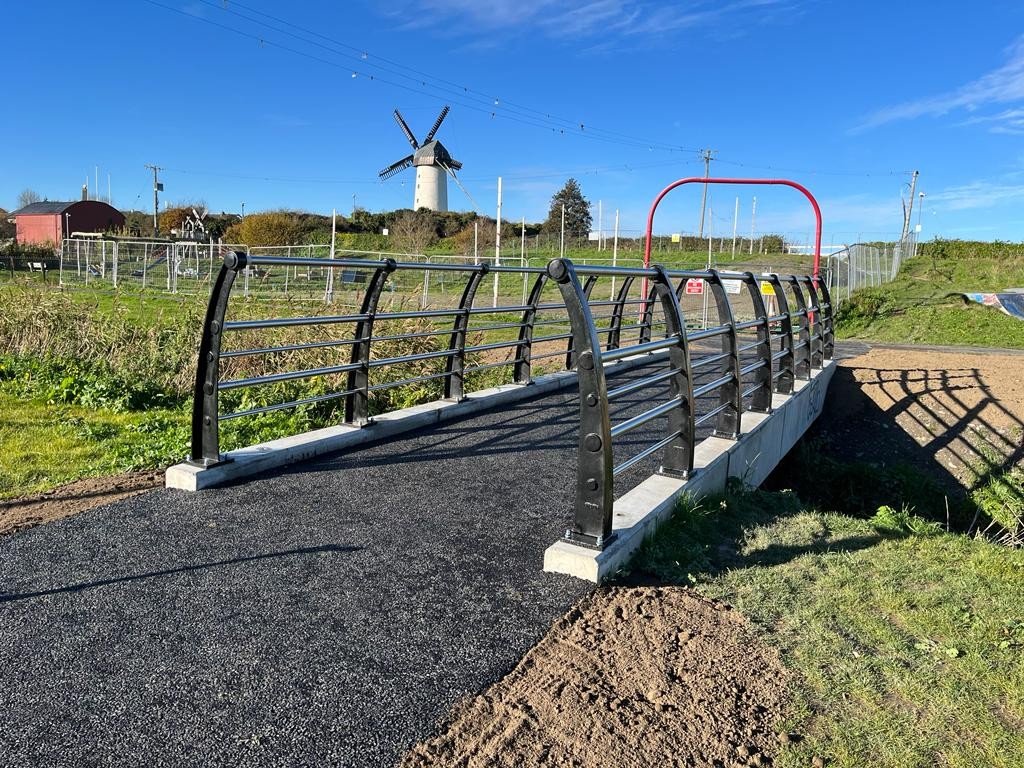

The project involved the design, manufacture, and installation of a pedestrian bridge and handrails. ESB and public lighting ducts were run through the bridge sections to replace the existing overhead line network with underground cables. This required the installation of a new ESB mini substation in the car park, for which IUS installed the sub-base.

New public lighting ducts and pots had to be installed along with additional ducting for CCTV cables to facilitate future improvements. All new road layout signage and markings were supplied and installed by IUS.

This project also included the redesign and improvement of the existing car park. This required the planting of 8 trees using the Strata Cell Urban Tree planting technology. The plaza surface had to be tarred with a buff resin-bonded gravel overlay, edged with granite cobble setts.

The project involved the removal of the roundabouts and the realignment of the junctions to create a T-junction. This required the installation of new slip form kerbing, storm water drainage gullies and manholes, ensuring all levels were correct to prevent waterlogging. New public lighting ducts and pots had to be installed, together with additional ducting for ESB cables to facilitate overhead line diversions in the future. All new road layout signage and markings were supplied and installed by IUS.

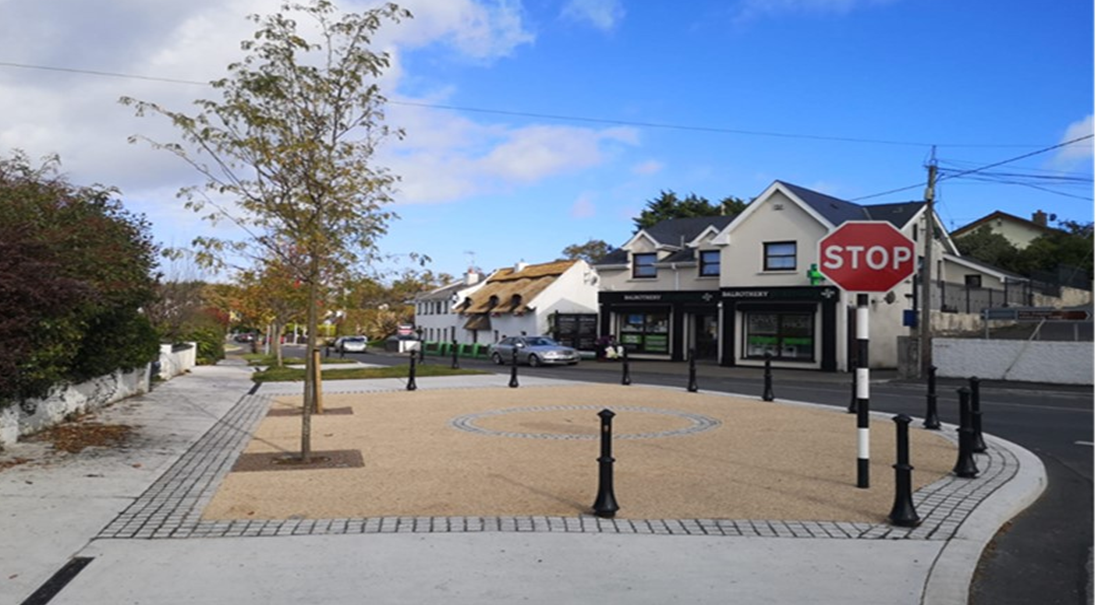

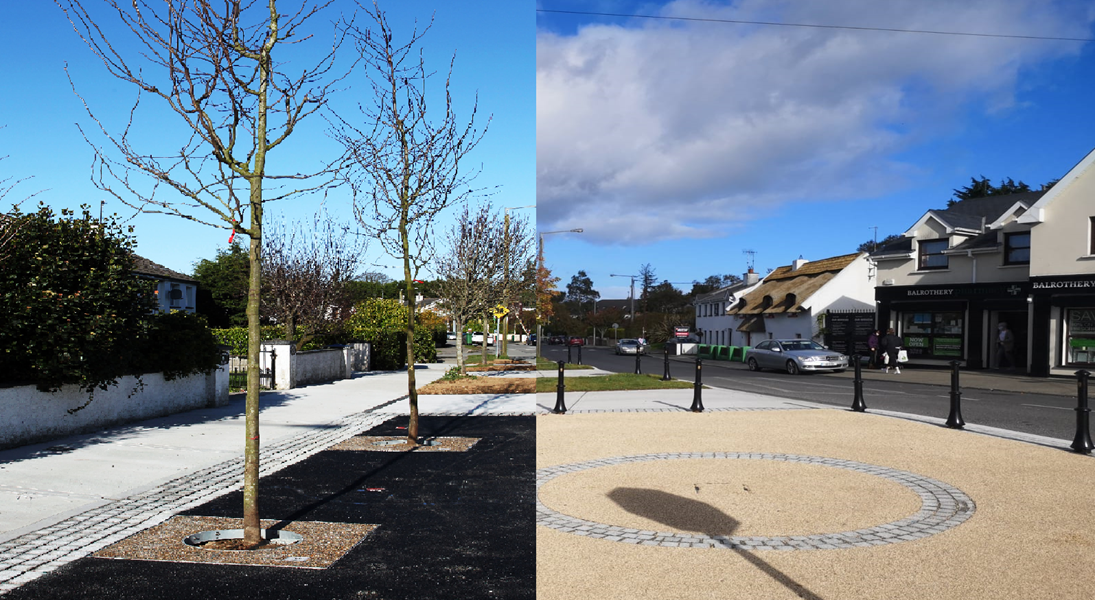

This junction improvement also required a build-out of a mini public plaza, which, in the future, would display an art sculpture. This included echo channel drainage, the provisions for art sculpture lighting, and the planting of 2 trees using the Strata Cell Urban Tree planting technology. The plaza surface had to be tarred with a buff resin-bonded gravel overlay, edged with granite cobble setts. IUS also removed and replaced over 300m² of concrete footpaths and supplied and installed over 50 bollards on the project.

Integrated Utility Services played a key role in delivering critical elements of the Balrothery town upgrade. Their work on the two traffic junction improvements, was completed to a high standard and with minimal disruption. We were also pleased to have IUS as the first contractor to install the new Tree Technology on behalf of Fingal County Council. The successful installation of two trees using the Strata Cell Urban Tree planting system within the mini plaza buildout reflects their capability and commitment to the project."

Aileen O’Connor, Fingal County Council

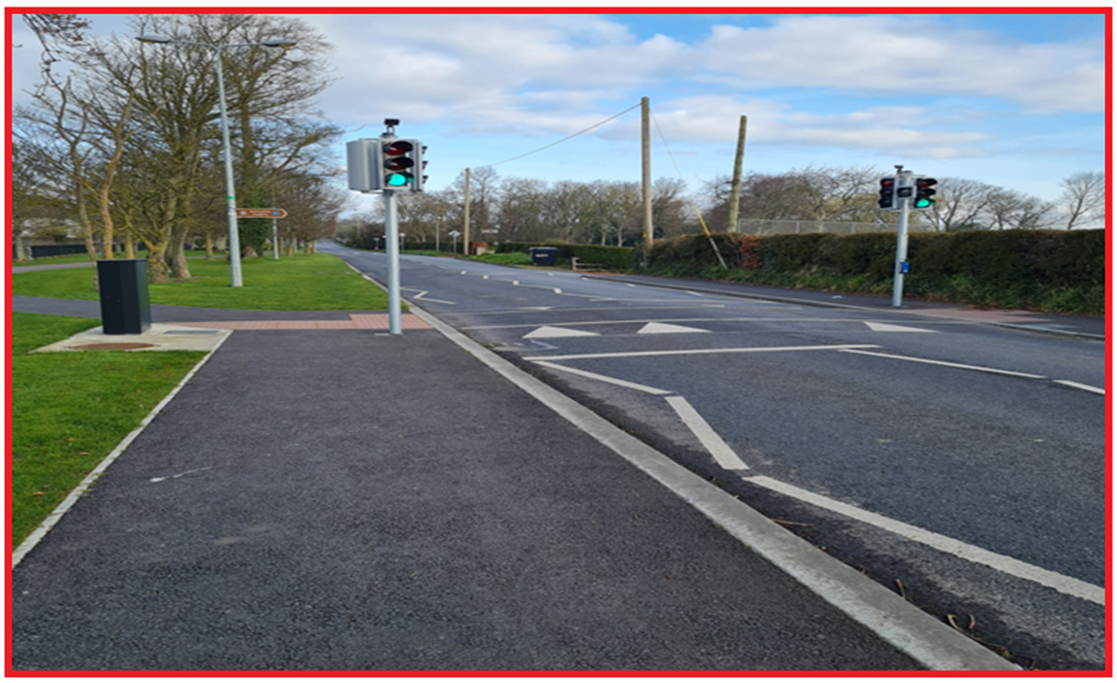

This scheme involved the provision of civil works for a new controlled pedestrian crossing with a raised crossing platform. Drainage and ducting works for new traffic lights and ESB Networks had to be installed. This involved carrying out an open-cut road crossing, the provision of concrete bases for control cabinets, and mini pillars. Three manholes and four gullies were installed to divert storm water into an existing drain. Existing footpaths were upgraded, and 40m of new paths were installed. Two round top speed ramps were also installed to prevent speeding as vehicles approached the pedestrian crossing. Advanced traffic signage and road markings were supplied and installed.


"Integrated Utility Services delivered an excellent standard of work on the traffic calming project in Ratoath. Given the location’s high footfall, adjacent to several busy community facilities, it was essential that the works were completed efficiently and to the highest safety standards. IUS provided signalled traffic calming measures that have significantly improved road safety in the area. Their professionalism, clear communication, and ability to manage works in a live environment were key to the project’s success."

Meath County Council
